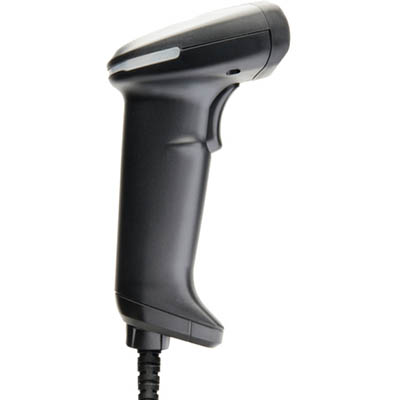

OPTICON L-46R 1D LASER BARCODE SCANNER BLACK

Code: 7071852   Brand: OPTICON   Colour: BLACK
Stock level:
Delivery (2-5 Days)
The Opticon L-46X is a fast laser scanner that comes with a stand
  • The L-46 scans at a speed of 100 frames per second
  • The cables are interchangeable, making it easy to switch between USB or RS-232 interface
  • 1D handheld laser barcode scanner with USB interface
  • Includes USB cable and desktop stand
  • 100 Scans per second
  • Auto Trigger option
  • High speed moving object scanning
Login for pricing

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features
Scan Engine: Red Laser
  • Light Source: 645-664 nm visible laser diode
  • Scan Pattern: Single Line, Bi-Directional
  • Scan Rate: 100 Scans/sec
  • Resolution: 0.076 mm
  • Depth of field: 20 - 895 mm (res. 1.0 mm / 39 mil), 0 - 495 mm (res. 0.5 mm / 20 mil), 0 - 300 mm (res. 0.33 mm / 15 mil), 5 - 200 mm (res. 0.25 mm / 9.84 mil), 5 - 90 mm (res. 0.15 mm / 6 mil), 10 - 60 mm (res. 0.127 mm / 5 mil), at PCS 0.9, Code 39
  • Tilt Angle: -20 to 0 degrees, 0 to +20 degrees
  • Pitch Angle: -35 to 0 degrees, 0 to +35 degrees
  • Skew Angle: -50 to 0 degrees, 0 to +50 degrees
  • Ambient Light Immunity: Fluorescent 4,000 lux max, Direct Sun 80,000 lux
  • Symbologies supported: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, Composite codes, MicroPDF 417, PDF417
  • Programming Method: Scan Barcodes from Manual
  • Indicators: 1 x Scan Key, Visual 1 White LED, Buzzer, vibrator
  • Operating Modes: Manual Trigger, Auto Trigger, Stand Detection
  • Communication Type: Cabled
  • Interfaces: RS232 - DB9 PTF connector with external power supply, USB - Ver. 2.0, HID/COM, USB-A connector
  • Supply Voltage: 5 V +-10 %
  • Power Consumption: Max. 155 mA (typical use)
  • Drop Specification: 1.8 m drop onto concrete surface, 10 - 100 Hz with 2G for 1 hour
  • Environmental Sealing: IP42
  • Operating Environment: -5 to 50 C, RH 5 - 90 % (non-condensing)
  • Storage Environment: -30 to 60C, RH 5 - 90 % (non-condensing)
  • EMC/Safety Standards: CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
  • External Dimensions: Scanner 105.4(w) x 60(d) x 153.4(h)mm, Stand 53(w) x 73(d) x 112(h)mm
  • Weight: Scanner 112 g (excl. Cable), Stand 365 g
  • Colour: Black
  • OEM: OPL-43
  • Due to freight costs, some orders may incur a delivery charge and this will vary depending on the order, particularly in regional areas. Delivery costs can be confirmed at the time of order. Some items require assembly, if you need help this can be advised at the time of order. A service fee for assembly/installation may also apply. Delivery lead times may apply to some items, this can be confirmed at the time of order
