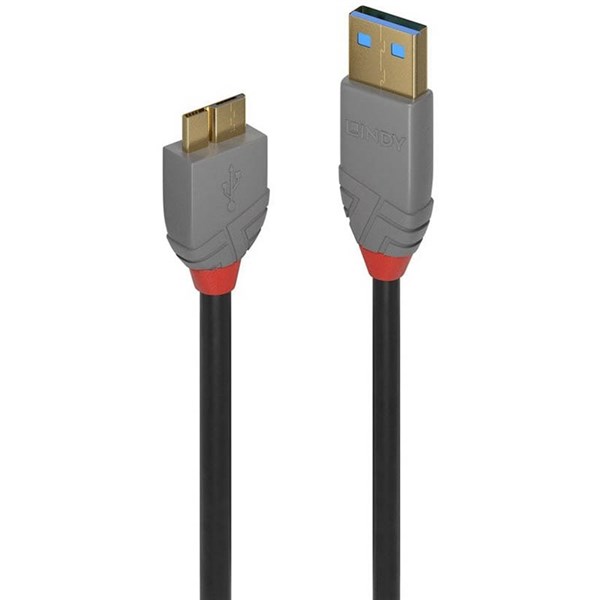

LINDY 36766 ANTHRA LINE USB-A TO MICRO-B 3.0 CABLE 1M BLACK

Code: 7104034   Brand: LINDY
Stock level: Contact Us
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 3.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations
  • Anthra Line USB 3.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance
  • High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability
  • The SuperSpeed protocol is supported with up to 5Gbps bandwidth to allow the rapid transfer of large data volumes
  • Professional choice USB 3.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
  • Supports SuperSpeed data transfer speeds up to 5Gbps
  • Robust PVC housing, gold plated connectors and contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • SuperSpeed, USB 3.0, 5Gbps
  • 10 year warranty

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Connectors
  • Connector A: USB 3.0 Type A Male
  • Connector B: USB 3.0 Micro-B Male
  • Housing Material: PVC
  • Connector Plating: Gold Plated
  • Pin Construction: Copper
  • Pin Plating: 24K Gold
  • Dimensions, USB A Male: 12.0 x 4.5 x 20mm
  • Dimensions, USB Micro-B: 8.0 x 6.5 x 21.7mm
  • Cable Length: 1m
  • Cable Construction
  • Standard: USB 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/28/30AWG
  • Shielding: Aluminium Braid 85%
  • Supported Bandwidth: 5gbps
  • Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz
  • Minimum Bend Radius: 48mm
  • Operating Temperature: 0C - 60C
  • Storage Temperature: 0C - 60C
  • Miscellaneous
  • Packaging Type: Polybag
  • Warranty: 10 Years
  • Certificated: RoHS, REACH, UL
  • OEM: 36766
