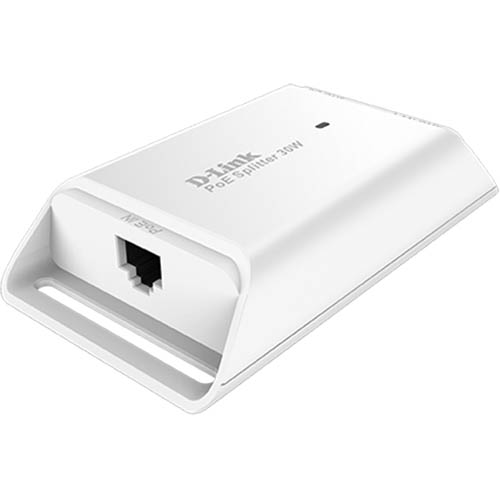

D-LINK DPE-301GS GIGABIT POE+ RECEIVER SPLITTER WITH 12V/9V/5V DC OUTPUT

Code: 7111742   Brand: D-LINK   Colour: WHITE   Size: Not Applicable
Stock level:
Delivery (2-5 Days)
The IEEE 802.3at/af compliant D-Link DPE-301GS PoE Splitter provides Gigabit Ethernet and high wattage electrical power to connect legacy devices that do not support PoE by separating power and data from a PoE source. This e?ectively turns any device into a PoE device, giving you the ability to mount your non-PoE device virtually anywhere in a building since it doesn't require a power outlet
  • Powers More Devices - Remotely connect a wider variety of more power demanding devices with the DPE-301GS. The DPE-301GS outputs up to 5 V DC, 9 V DC, or 12 V DC, making it better able to cope with the demands of surveillance cameras, 802.11ac Wi-Fi networking devices, security equipment, and even consumer electronics
  • PoE Injector and PoE Splitter Tandem - Both the DPE-301GI (injector) and DPE-301GS (splitter) can be used together, as a complete PoE transport system. This is especially useful when a PoE switch is not available, and the end device is not PoE capable, but the Network Administrator still prefers the benefits of PoE. Simply install the injector close to the network switch, install the splitter close to the end device, and plug in the cables
  • Receives PoE/PoE+ up to 30 Watts
  • Output 5V, 9V or 12V DC
  • Gigabit connection
  • Plug-and-Play installation
  • Compact design with mounting brackets
Login for pricing

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features
PoE In: Supports half/full-duplex operation, 10/100/1000BASE-T port, IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3at compliant, IEEE 802.3af compliant
  • Lan Out: Supports half/full-duplex operation, 10/100/1000BASE-T port, IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant
  • LED Indicator - Green: Power On
  • Dimensions: 109.8(w) x 62.2(d) x 24.5(h)mm
  • Weight: 98 grams
  • Power Output: 5 V DC up to 2.5 A, 9 V DC up to 2 A, 12 V DC up to 2 A
  • Included Power Adapter Cables: 5.5 mm to 3.8 mm male to male, 5.5 mm to 5.5 mm male to male
  • Temperature Operating: 0 to 60 C
  • Temperature Storage: -30 to 70 C
  • Operating Humidity: 5% to 95% non-condensing
  • Storage Humidity: 5% to 95% non-condensing
  • Certifications: CE, FCC, VCCI, RCM, RoH
  • Warranty: 1-Year Limited Warranty
  • OEM: DPE-301GS
