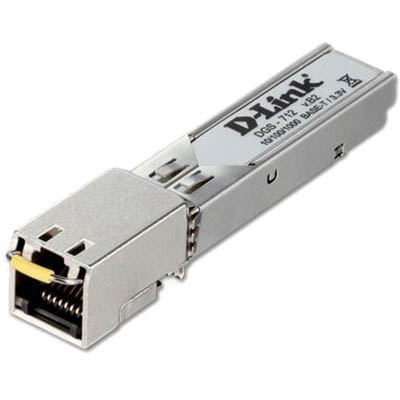

D-LINK DGS-712 GIGABIT SFP TO RJ45 TRANSCEIVER

Code: 7111739   Brand: D-LINK   Colour: BLACK   Size: Not Applicable
Stock level:
Delivery (2-5 Days)
D-Link's DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement
  • Compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab
  • The D-Link DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper
  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Extended case temperature range
  • Fully metallic enclosure for low EMI
  • Low power dissipation (typical 1.2 watts)
  • RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • Gigabit Ethernet over Cat. 5 cable
  • +3.3V electrical power interface
Login for pricing

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features
Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Transceiver Type: SFP (Small Form Pluggable)
  • Connector: RJ-45
  • Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required
  • Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only
  • Cable Type: Cat. 5 twisted-pair cable
  • Maximum Cable Distance Coverage: 100 meters
  • Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature
  • Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum)
  • Maximum Voltage: 4V
  • Surge Current: 30mA
  • Operating Temperature: 0 to 85 C
  • Storage Temp: -40 to 85 C
  • Warranty: Limited Lifetime
  • OEM: DGS-712
