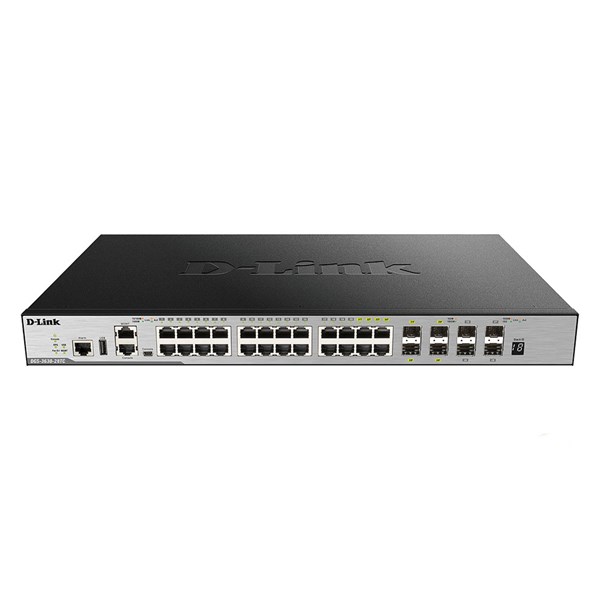

D-LINK DGS-3630-28TC SWITCH 3 LAYER BLACK

Code: 7114686   Brand: D-LINK
Stock level:
Delivery (2-5 Days)
20 x 10/100/1000BASE-T ports
  • 4 x Combo 10/100/1000BASE-T/SFP ports
  • 4 x 10G SFP+ ports
  • 6 kV surge protection on all RJ-45 access ports
  • Switch resource management (SRM) for ?exible management of system resources
  • Redundant Power Supply (RPS) support
  • MPLS L2VPM/L3 VPN support
  • Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
  • SDN enabled switch, compatible with Openflow 1.3
Login for pricing
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
Features
Type: Port switch
  • 10/100/1000BASE-T Ports: 20
  • Combo 10/100/1000BASE-T/SFP Ports: 4
  • 10G SFP+ Ports: 4
  • RJ45 and Mini USB Port: 1
  • RJ45 Management Port: 1
  • RJ45 Alarm Port: 1
  • USB 2.0 Port: 1
  • Switch Capacity: 128 Gbps
  • Max. Packet Forwarding Rate: 95.24 Mpps
  • Store and Forwarding Forwading: Yes
  • Operation Humidity: 10 to 95 percent RH
  • Storage Humidity: 5 to 95 percent RH
  • Operating Altitude: Up to 2000 M
  • Maximum Power Consumption: 42.4 W
  • Standby Power Consumption: 28.1 Watt
  • Maximum Heat Dissipation: 144.58 BTU/h
  • MTBF: 300,190.46 hours
  • Power Input AC Input: 100 to 240 VAC, 50 to 60 Hz
  • Redundant Power Supply: Yes
  • CPU Speed: 1GHz
  • DRAM Size: 1GB (Byte) to DDR3
  • Flash Memory Size: 1GB (Byte)
  • Packet Buffer Size: 4MB
  • Physical Stacking Bandwidth: 80 G (support stacking trunk)
  • Units Per Physical Stack: 9
  • Units Per SIM Stack: 32
  • MAC Address Table Size: Up to 68K (SRM's LAN mode)
  • Link Aggregation Group Per Device: 32
  • Max Port Per Link Aggregation Group: 8
  • Jumbo Frame: 12K Bytes
  • Number of Queu: 8
  • Dimension: 441 x 259.8 x 44mm
  • Colour: Black
  • OEM: DGS-3630-28TC
