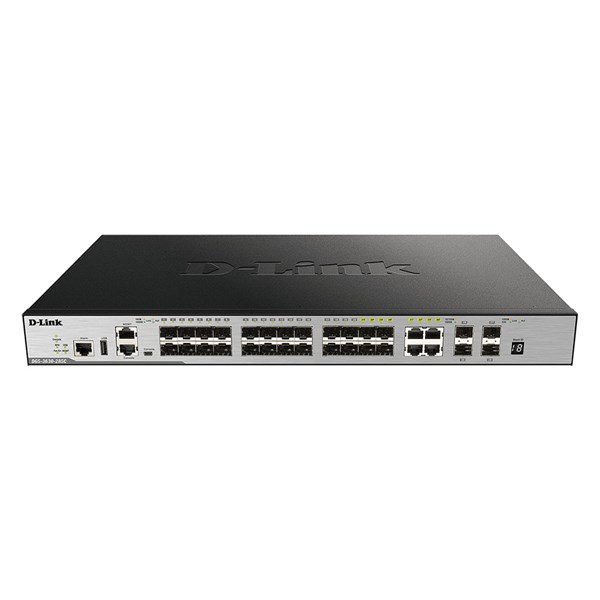

D-LINK DGS-3630-28SC SWITCH 3 LAYER BLACK

Code: 7114685   Brand: D-LINK
Stock level:
Delivery (2-5 Days)
20 x SFP ports
  • 4 x combo 10/100/1000BASE-T/SFP ports
  • 4 x 10G SFP+ ports
  • 6 kv surge protection on all RJ-45 access ports
  • Switch resource management (SRM) for ?exible management of system resources
  • Redundant power supply (RPS) support
  • MPLS L2VPM/L3 VPN support
  • Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
  • SDN enabled switch, compatible with Openflow 1.3
Login for pricing

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features
Type: Port switch
  • SFP ports: 20
  • Combo 10/100/1000BASE-T/SFP ports: 4
  • 10G SFP+ ports: 4
  • RJ 45 and Mini-USB port: 1
  • RJ 45 Management Port: 1
  • RJ 45 Alarm port: 1
  • USB 2.0 port: 1
  • Switch Capacity: 128 Gbps
  • Max. Packet Forwarding Rate: 95.24 Mpps
  • Store and Forwarding Forwading: Yes
  • Operation Humidity: 10 to 90 percent RH
  • Storage Humidity: 5 to 95 percent RH
  • Operating Altitude: Up to 2000 M
  • Maximum Power Consumption: 63.58 W
  • Standby Power Consumption: 30.1 Watt
  • Maximum Heat Dissipation: 216.81 BTU/h
  • MTBF: 280,612.09 hours
  • Power Input AC Input: 100 to 240 VAC, 50-60 Hz
  • Redundant Power Supply: Yes
  • CPU Speed: 1GHz
  • DRAM Size: 1GB
  • Flash Memory Size: 1GB (Byte)
  • Packet Buffer Size: 4MB
  • FAN: Yes
  • Comply with RoHS 6: Yes
  • Power Saving By Link Status: Yes
  • Power Saving By Cable Length: Yes
  • Power Saving By LED Shut Off: Yes
  • Power Saving By Port Shut Off: Yes
  • Power Saving By System Hibernation: Yes
  • Energy Efficiency Ethernet (EEE): Yes
  • Physical Stacking: Yes
  • Physical Stacking Bandwidth: 80 G (support stacking trunk)
  • Units Per Physical Stack: 9
  • Units Per SIM Stack: 32
  • D-Link Single IP Management (SIM): Yes
  • MAC Address Table Size: up to 68K (SRM's LAN mode)
  • Black Hole MAC Address: Yes
  • 802.3x Flow Control: Yes
  • Head of line (HOL) Blocking Prevention: Yes
  • BPDU Filtering: Yes
  • Root Guard: Yes
  • Loop Guard: Yes
  • 802.1D Spanning Tree (STP): Yes
  • 802.1w Rapid Spanning Tree (RSTP): Yes
  • 802.1s Multiple Spanning Tree (MSTP): Yes
  • Multiple ERPS Ring: Yes
  • G.8032 ERPS: Yes (Support ERPSv2)
  • Link Aggregation Group Per Device: 32
  • Max Port Per Link Aggregation Group: 8
  • 802.1AX Link Aggregation: Yes
  • 802.3ad Link Aggregation: Yes
  • Port Mirroring: Yes
  • VLAN Mirroring: Yes
  • Flow based (ACL) mirroring: Yes
  • Jumbo Frame: 12K Bytes
  • L2 Protocol Tunneling: Yes
  • Flex Link: Yes
  • Loopback Detection (LBD): Yes
  • Max IGMP Snooping Groups: up to 8K (refer to SRM)
  • IGMP Snooping Fast Leave: Yes
  • MLD Snooping Groups: Up to 4K (refer to SRM)
  • VLAN Groups: 4,096
  • Selective Q in Q: Yes
  • VLAN Translation: Yes
  • VLAN trunking: Yes
  • 802.1Q VLAN: Yes
  • 802.1v Protocol based VLAN: Yes
  • Double VLAN (Q in Q): Yes
  • ISM VLAN (Multicast VLAN): Yes
  • IP Interface: Yes
  • Max Number of IP Interface: Yes
  • Loopback Interface: Yes
  • Null Interface: Yes
  • ARP: Yes
  • ARP Entries: Up to 32K (SRM's IP mode)
  • ND Entries: Up to 16K (SRM's IP mode)
  • UDP Helper: Yes
  • IPv6 Tunneling: Yes
  • IPv6 Neighbor Discovery (ND): Yes
  • VRRP: Yes
  • Routing Table Entry: 16K (16,384)
  • L3 Forwarding Table Entry: Up to 32K (SRM' IP mode)
  • Default Route: Yes
  • Static Route: Yes
  • Equal Cost Multi Path Route (ECMP): Yes
  • Weighted Cost Multi Path Route (WCMP): Yes
  • Policy based Route (PBR): Yes
  • Graceful Restart (GR) Helper: Yes
  • 802.1Qbb Priority-based Flow Control (PFC): Yes (only for 10G port)
  • Port based Bandwidth Control: Yes
  • Flowbased bandwidth Control: Yes
  • Queue Based Bandwidth Control: Yes
  • MAC Access List; Yes
  • IP Access List: Yes
  • IPv6 Access List: Yes
  • Time Based ACL: Yes
  • CPU Interface Filtering: Yes
  • Max Access Control List (ACL) Entries: 3072
  • 802.1X: Yes
  • Port based 802.1X Authentication: Yes
  • Host based 802.1X Authentication: Yes
  • Identity Driven 802.1X Policy Assignment: Yes
  • Weight: 3.79kg
  • Dimension: 441 x 259.8 x 44mm
  • OEM: DGS-3630-28SC
