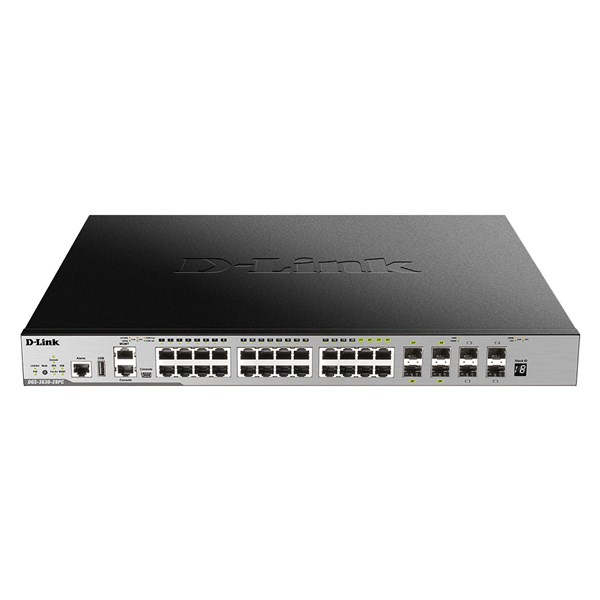

D-LINK DGS-3630-28PC SWITCH 3 LAYER BLACK

Code: 7114684 Brand: D-LINK

Stock level:
Delivery (2-5 Days)

20 x 10/100/1000BASE-T PoE ports

4 x Combo 10/100/1000BASE-T PoE/SFP ports
4 x 10G SFP+ ports
Supports IEEE 802.3af/at power over ethernet
6 kV surge protection on all RJ-45 access ports
Switch resource management (SRM) for ?exible management of system resources
Redundant power supply (RPS) support
MPLS L2VPM/L3 VPN support
Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
SDN enabled switch, compatible with openflow 1.3

Login for pricing

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Features

Type: Port switch

10/100/1000BASE-T PoE ports: 20
RJ-45 Alarm Port: 1
RJ-45 and Mini USB Port: 1
USB 2.0 Port: 1
Combo 10/100/1000BASE-T PoE/SFP Ports: 4
10G SFP+ Ports: 4
RJ45 Management Port: 1
Switch Capacity: 128 Gbps
Max. Packet Forwarding Rate: 95.24 Mpps
Store and Forwarding Forwading: Yes
Maximum Heat Dissipation: 1600.31 BTU/h
MTBF: 259,222.76 hours
Operating Altitude: Up to 2000 M
Operation Humidity: 10 to 95 percent RH
Standby Power Consumption: xxx Watt
Power Input AC Input: 100 to 240 VAC, 50-60 Hz
Redundant Power Supply: Yes
CPU Speed: 1GHz
DRAM Size: 1GB (Byte) DDR3
Flash Memory Size: 1GB (Byte)
Packet Buffer Size: 4MB
PoE Budget: 370 W
Physical Stacking Bandwidth: 80 G (support stacking trunk)
Units Per Physical Stack: 9
Units Per SIM Stack: 32
MAC Address Table Size: up to 68K (SRM's LAN mode)
G.8032 ERPS: Yes (Support ERPSv2)
Link Aggregation Group Per Device: 32
Max Port Per Link Aggregation Group: 8
L3 IP Multicast Entry: Up to 8K (refer to SRM)
Number Of Queue: 8
802.1Qbb Priority based flow Control (PFC): Yes (only for 10G port)
Max Access Control List (ACL) Entries: 3072
Dimension: 441 x 380 x 44mm
Colour: Black
OEM: DGS-3630-28PC
