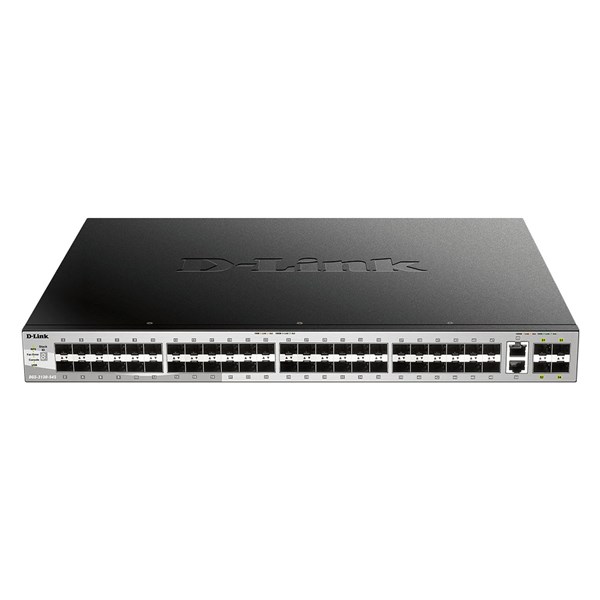

D-LINK DGS-3130-54S SWITCH 3 LAYER BLACK

Code: 7114682   Brand: D-LINK
Stock level:
Delivery (2-5 Days)
48 x SFP ports
  • 2 x 10GBASE-T and 4 x 10G SFP+ ports provide all the uplink capacity your network needs
  • Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
  • High redundancy features to provide professional-grade reliability and a longer product life
  • Dual power inputs
  • 6 kV surge protection protects the device and those connected from unexpected surges
  • 802.1d/w/s Spanning Tree Protocol avoids potentially network crippling loops
  • RIP/RIPng and OSFPv2/v3 dynamically maps out your network, aiding data to get to its destination via the fastest route possible
  • Expand capacity in a flash with physical stacking up to 9 units
  • 80 Gbps per device physical stacking bandwidth
  • The Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
Login for pricing
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
Features
Type: Port switch
  • SFP Ports: 48
  • 10GBASE-T Ports: 2
  • 10G SFP+ Ports: 4
  • 1000M SFP Interface: 48
  • 10G SFP+ Interface: 4
  • 10GBase-T Interface: 2
  • Switch Capacity: 216 Gbps
  • Max. Packet Forwarding Rate: 161 Mpps
  • Maximum Power Consumption: 131 W
  • Operating Altitude: 2000m
  • Standby Power Consumption: 68.7W
  • Maximum Heat Dissipation: 446.99 BTU/h
  • MTBF: 520,861 hours
  • Power Input: AC: 10 to 240 V
  • Redundant Power Supply: DPS to 500A
  • CPU Speed: 1.25GHz
  • DRAM Size: 1GB DDR4
  • Flash Memory Size: 256MB NAND
  • Packet Buffer Size: 4MB
  • FAN: Yes
  • Physical Stacking Bandwidth: 80G, with stacking port trunking
  • Units Per Physical Stack: 9
  • D-Link Single IP Management (SIM): Yes
  • Units Per SIM Stack: 32
  • MAC Address Table Size: 16,384 (16K)
  • Link Aggregation Group Per Device: 32
  • VLAN Groups: 4094
  • Port based VLAN: Yes
  • Dimension: 440 x 44 x 350mm
  • Colour: Black
  • OEM: DGS-3130-54S
