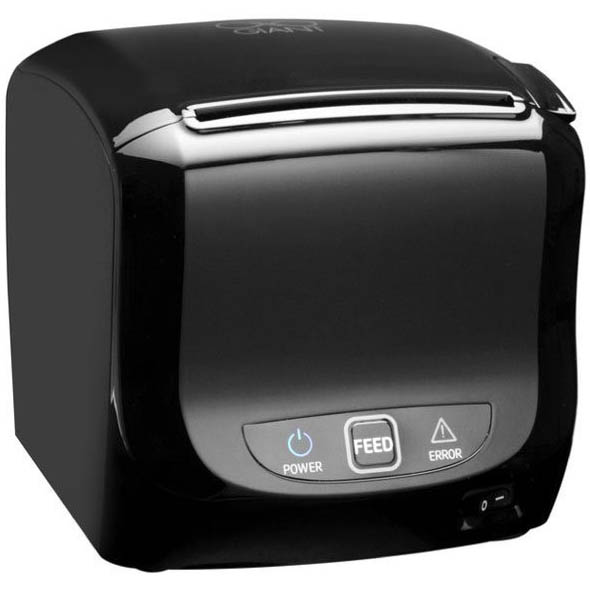

SAM4S GT-100 THERMAL POS PRINTER USB/RS232/ETH I/F BLACK

Code: 7097406   Brand: SAM4S
Stock level:
Delivery (2-5 Days)
The GIANT SAM4S GT-100 is a ideal 3 inch thermal receipt printer, distinctive in its compact size and modern design without compromise to performance while still using the industry standard 80mm wide direct thermal receipt paper rolls
  • The GT-100 is a signpost design that introduces the direct for future receipt printer design formats
  • Thermal POS Printer
  • 250mm/sec Printing Speed
  • Compact Size/Small Footprint
  • Supporting USB+Serial, USB + WiFi and USB + Serial + Ethernet (3-Combo) Interface
  • Tool-less Design

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Printing Method: Line thermal printing
  • Printing Width: 80mm Paper 72mm; 58mm Paper 54mm
  • Dot Pitch: 180 dpi
  • Printing Speed: Max. 250 mm/sec
  • Number of Columns: 80 mm Paper: Font A - 42 columns, Font B - 56 columns; 58 mm Paper: Font A - 30 columns, Font B - 40 columns
  • Character Size: Font A:42/21; Font B:56/28
  • Character Table/Code: Refer to Programming manual
  • Bar-code Type: UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code
  • Line Spacing: N/A
  • Paper feed method: Friction
  • Paper Type: Thermal Paper Roll
  • Paper Width: 80+0/-1 mm, 58 mm+0/-1
  • Paper Roll Diameter: Max 83mm
  • Paper Thickness: 0.06 - 0.08mm
  • Paper Supply Method: Easy Paper Loading, Drop in and Print
  • Auto Cutter: Guillotine Type
  • Indicators/Controls: Power Light, Error Light, Feed Button, on/off Switch
  • Emulation: ESC/POS, Star
  • Print Buffer: 64KB
  • NV Memory: 128K NV Memory
  • Sensors: Paper end Sensor, Printer Cover open Sensor
  • Drawer Port: 1 port (opens 2 drawers, special cable is needed to open 2 drawers)
  • External Device Port: N/A
  • Interfaces: USB & RS232(RJ45) & Ethernet
  • Driver available: WEPOS, POSReady2009, Windows XP pro, Windows Vis, Windows 7 Pro, POS ready 7, Windows 8 Pro, Industry 8, POS, JPOS, Linux, Cups, Max(OSX10.8), Android SDK
  • Power Supply: External AC Adapter; Rated input: AC 90 to 264 V, 50/60 Hz; Rated output: DC24 V, 2.5 A
  • External Dimensions: 131(w) x 155(d) x 133(h)mm
  • Weight: 0.9 Kg
  • Operating Environment: 5-45 deg C, 10-90% RH
  • Storage Environment: -10-50 Deg C, 10-90% RH
  • Reliability: MCBF Mechanism: 70 mil Lines; Thermal Print head: 150Km; Auto Cutter: 1.5 Mil cuts
  • Warranty: 12 months
  • Colour: Black
  • OEM: GT100UERBL
