MAJOR TECH COMPACT DIGITAL MULTIMETER 1000V AC/DC

Code: 7122465   Brand: MAJOR TECH
Stock level:
Delivery (2-5 Days)

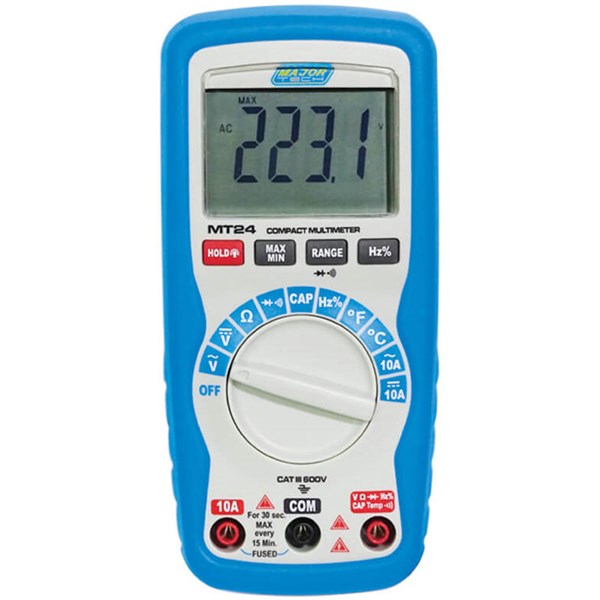

The MT24 is a compact meter with double moulded rubber housing
  • Meets the International Standard IEC-61010-1 CAT III 600V
  • Features a large LCD display screen with white backlight for use in arduous areas
  • Very economical tester ideally suited for everyday use by electricians, electronic technicians, and the air conditioning industry
  • Autoranging multimeter with the option of manual override
  • Has a 6000 count LCD display with a 61 segment analogue bargraph
  • Offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement up to 4000 F, and resistance up to 60MO
  • Includes temperature measurement in either DegreeC or DegreeF with a range from -200 up to 760 degree C
  • Supplied with an adaptor that converts the 4mm input to accept K-Type thermocouples
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
DC Voltage: 0.1mV 1000V
  • AC Voltage: 1mV 1000V 0.1mV
  • DC Current: 1mA 10A 1mA
  • AC Current: 1mA 10A
  • Duty Cycle: 0.1 to 99.90%
  • Resistance: 0.1O 60.00MO
  • Frequency: 0.00Hz 10MHz
  • Capacitance 10pF 4000 F
  • Temperature: -20 C to 760 C
  • AC Bandwidth: 50Hz to 60Hz
  • Digital Display: 6000
  • Continuity: Yes
  • Diode Test: Yes
  • Overrange Indication: Yes
  • Input Impedance: 7.8MO VDC & 7.8MO VAC
  • Min Max: Yes
  • Data Hold: Yes
  • Enclosure: Double moulded
  • Low Battery Indication: Yes
  • Battery: 9V
  • Weight: 255g
  • Dimensions: 150 x 70 x 48mm
  • Safety Specs: IEC61010-1 CAT III 600V
