Type: Survelliance Camera
- Camera Specifications
- Camera Type: Turret
- Image Sensor: 1/2.7 inch Progressive CMOS
- Maximum Video Resolution (Megapixels): 4
- Maximum Video Resolution: 2560 x 1440
- Lens: 2.8 mm (H.FOV: 88 degree)
- Lens Type: Fixed
- Maximum Night IR Distance: 20m
- Video Compression: H.265, H.264, MJPEG
- ONVIF depends on firmware version: ONVIF( Profile S/G/T) 21.12 or greater, Http API
- IP Rating: IP66
- Operating Environment: -10 to 55 degree C, Humidity: 20%-80% RH
- Dimension: 100 x 100mm
- Weight: 0.22kg
- Accessories: IV2422X, IV2477X, IV2433X, IV2444X, IV2455X, IV2457X
- Power Supply: Power over Ethernet IEEE 802.3af, DC12V
- Power Consumption: less than 4W
- Connectors: RJ-45 , DC Power Input
- Outdoor Use: Yes
- Vandal Resistant: No
- Frame Rate at Resolution: 25
- Day/Night Mode: Auto
- Image Enhancement: Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
- Edge Recording: Micro SD/SDHC Card
- Multiple Streams (encode format): 2 Streams
- Audio Streaming: Yes (microphone included)
- Protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
- Intelligent Video (IVS): Smart Motion Detection, Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection
- Software Device: Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
- Power Over Ethernet: Yes
- Ethernet: Ethernet (10/100 Base-T)
- Warranty: 12 Months Parts Warranty

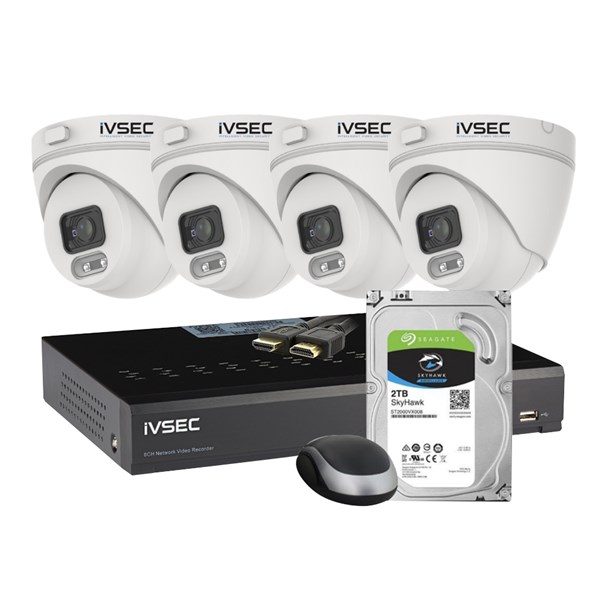

- Package Includes: 4 x IVSEC NC000XA 4MP IP Cameras, IVSEC NR004XA-2TB Network Video Recorder, 1 x HDMI cable, 1 x Mouse, 2TB SkyHawk Surveillance HHD pre-installed, Printed quick user guide, installation template, mounting screws and plugs
- OEM: LVK-000
