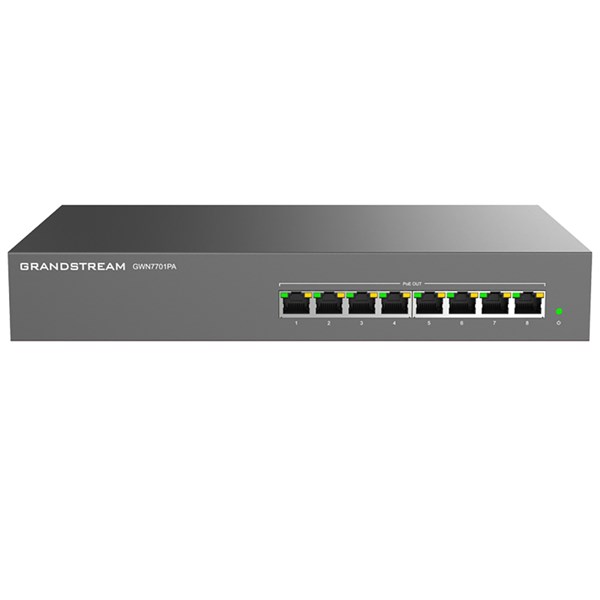

GRANDSTREAM GWN7701PA NETWORK SWITCH UNMANAGED 8 PORT 8 POE BLACK

Code: 7115861   Brand: GRANDSTREAM
Stock level:
Delivery (2-5 Days)
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses
  • It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables
  • Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance
  • The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints
  • The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to-medium businesses
  • Features
  • 5 and 8 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA)
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/GWN7701PA only)
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Unlink clear FDB Feature (GWN7701/GWN7701P/GWN7701PA only)
  • QoS - Supports Default Strict Priority when present
Login for pricing
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
Features
Gigabit Ports: 8
  • PoE Ports: 8
  • Enclosure: Metal
  • Mounting: Desktop/Rack-Mount
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
  • Port Feature: 8 x 10/100/1000Mbps RJ45 Ports; AUTO Negotiation; AUTO MDI/MDIX
  • Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • PoE Configuration: 1 to 8 Ports 802.3 af/at compliant; Up to 30 W on Each Port, Total 145W Power Budget; Overload to cut off the lowestpriority port; Priority: Port 8 to Port 1
  • LED Indicators: Per port- Link/Activity - Green; Per port- PoE output - Yellow; Per device- Power Green
  • Mac Address Table: 8K
  • Switching Capacity: 16Gbps
  • Jumbo Frame: 9KB
  • Advanced Features: Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP- IGMP Fast-Leave, IGMP Snoop, Route Port Autolearn, Query Refresh Member Port
  • Power Adapter: Internal 100-240V AC, 50/60Hz,150W
  • Max Power Consumption by Base System: 6.7W at 220V/50Hz (excluding PoE output power)
  • Environmental: Operating Temperature: 0 to 40 degree C (32 to 104 degree F), Storage Temperature: -20 to 60 degree C (-4 to 140 degree F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
  • Dimension: Unit: 280 x 180 x 44mm, Package: 366 x 211 x 53mm
  • Weight: Unit: 1.5Kg, Entire Package: 2.1Kg
  • Package Includes: 1x Switch, 1x 1.2m AC Cable, Rack-mounting, Standard Brackets, 4x Rubber Feet, 1x QIG
  • Compliance: FCC, CE, RCM, IC, UKCA
  • OEM: GWN7701PA
