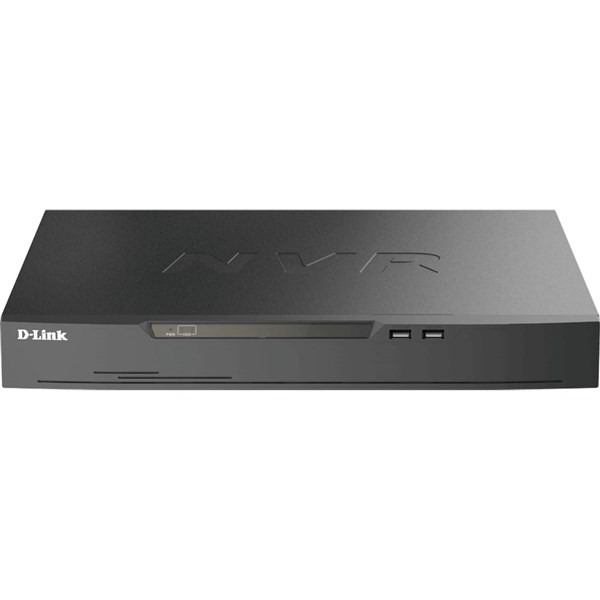

Type: Surveillance camera controller
- Channel Number: 16 Channels
- Operating System: Embedded Linux
- Configuration Backup and Restore: Yes
- Multilingual list (A - O): Chinese (Simplified), Chinese (Traditional), English, French, German, Italian
- Multilingual: 7 Languages
- Multilingual list (P - Z): Portuguese, Spanish
- Recording Performance: Maximum recording bitrate: 112Mbps/sec
- Compression Format: H.264/ H.265
- Authorization (User Privilege): Yes
- Display Mode (View Layout): 1, 4, 8, 9,16 Split Screen
- PTZ Control (Mechanical/ Optical): Yes
- Auto Scan (Camera View Rotation): Yes
- Auto Pan: No
- Digital PTZ Control: Yes
- Preset Control: Yes
- Auto Patrol: No
- Full Screen: Yes
- Snapshot: Yes
- Two-way Audio: Two-way Audio
- Camera OSD (On Screen Display): Yes
- Recording Type: Schedule/ Manual/ Alarm In/ Motion
- Audio Recording: Yes
- Pre-recording/ Post-recording Period: Post-rec: 60 sec
- Multiple View (Duplicate Camera): Yes
- Auto Recycling (Disk Capacity): Yes
- Edge Motion Detection (by Camera): Yes
- Simultaneously Playback Channel: 16 Channel
- Playback Mode: Video Control (Play, Stop, Pause, Forward, Backward, Next Frame, Rewind)
- Audio Control: Yes
- Video Export File Format: MP4
- Digital Zoom Ratio: 4x
- Image Export File Format: JPG
- Scheduled Recycling (Days): Yes
- Video Search (Factor): Yes (Time, Camera)
- Smart/ Intelligent Search (Factor): No
- Tamper-Proof (Digital Watermark): No
- I/O Control: Yes
- Event to Email: Yes
- Event to Alarm: Yes
- Event by Disk Full: Yes
- Event by Signal Lost: Yes
- Client Viewer: Browser/ JustConnect+ APP
- Central Viewer: No
- Playback Viewer: Browser
- Secondary Streaming Profile: Yes
- Remote Live View Channel (Max): Maximum 8 users
- Concurrent Channel per Client (Max): 16 Channels
- Remote Playback Channel (Max): 16 Channels
- E-Map Layer: N/A
- E-Map Indicator: N/A
- E-Map Image Format: N/A
- Camera Preview: N/A
- Supported Camera: D-Link IP Cameras
- Auto Surveillance VLAN Support: Yes
- HDD Bay: 2 x 3.5inch SATA HDD, Max. 16TB
- Network Interface: 1 x Gigabit Port, 16 x 100BASE-T PoE port (802.3af )
- Auto Boot-Up (Power Recovered): Yes
- Dimensions: 372(w) 310.5(d) x 46.5(h)mm
- Weight: 2100g
- Power Consumption (watts): 143 (Max) 0 (Standby)
- Operation Temperature: 0 to 40C
- Playback System: No
- Backup System (Video Clips): No
- Verification Tool (Digital Watermark): No
- NVR Search (Discovery): No
- Audio Compression Format: G.711, AAC
- Network Service Protocol: IPV4, ARP, TCP, UDP, ICMP , DHCP Server/Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP/HTTPS Server, RTP, RTCP, RTSP, IP filtering, UPnP, Bonjour (mDNS + DNS-SD), SNMP v1/v2c/v3, ONVIF
- OEM: DNR-4020-16P
