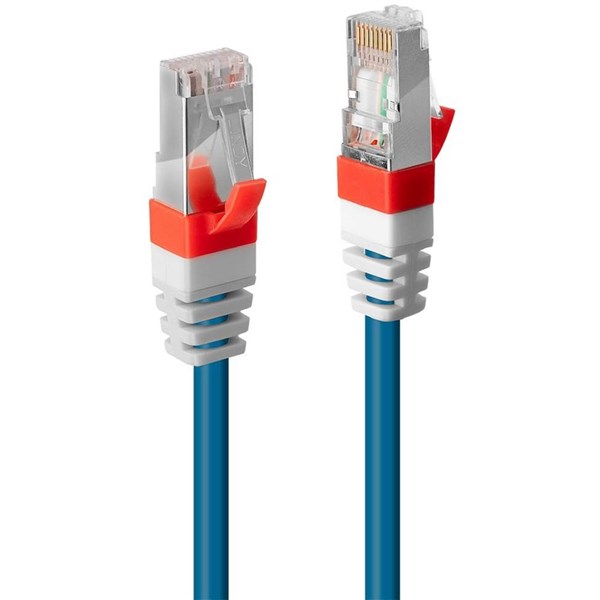

LINDY 45376 NETWORK CABLE CAT.6A S/FTP LSZH GIGABIT 3M BLUE

Code: 7109487   Brand: LINDY
Stock level:
Delivery (2-5 Days)
Lindy Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T
  • Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP)
  • Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz
  • These cables are manufactured and tested according to the ISO/IEC 11801 specification
  • The cables are packaged individually in a polybag
  • The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time
  • A robust snagless strain relief design prevents damage to the connector latch during installation and removal
  • The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions
  • Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Tested)
  • Cat.6A S/FTP PIMF, LSZH
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 10 year warranty

Please note: Prices are shown excluding GST (where applicable) and are in AUD$

Connectors
  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions:11.6(w) x 21.5(d) x 8.3(h)mm
  • Cable Construction
  • Length: 3m
  • Type: Cat.6A
  • Jacket Diameter: 6.2mm
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: Aluminium / Polyester
  • General
  • Supported Bandwidth: 500MHz
  • Nominal Attenuation: 67.86dB/100m @ 500MHz
  • Minimum Bend Radius: 18.6mm
  • Operating Temperature: -25 C - 60 C
  • Storage Temperature: -25 C - 60 C
  • Miscellaneous
  • Packaging Type: Polybag
  • Warranty: 10 Years
  • Certificated: RoHS, REACH, UL
  • OEM: 45376
